Guardrails

Protect employees from injury and equipment and property from damage with high-strength guardrails. In addition to adding a layer of safety, guardrails also serve as a high-visibility sign for operators and employees to be cautious.

WireCrafters GuardRail protective railing system comes in two styles – single or double rail. The single guard rail columns are 17″ high, where double guard rail columns are 43″ high. All GuardRail columns are 4″ square x 1/4″ wall structural steel tubing with metal caps, and 9″ square x 1/2″ thick steel base plates. The base plates have four 7/8″ round anchor holes, and the floor anchors are provided.

  • Rated to withstand impact of 10,000 lb load at 4 miles per hour.
  • All assembly hardware, including floor anchors, is included with your order.
  • Optional lift-out sections, and offset column base plates available.

The 11 gauge formed steel rails come in standard lengths (0′-8″, 1′-8″, 2′-8″, 3′-8″, 4′-8″, 5′-8″, 6′-8″, 7′-8″, 8′-8″, and 9′-8″) to reach even foot increments center to center of each column. Rails mount to the columns with 1/2″ x 5″ through bolts. All rails are powder coat painted safety yellow.

Need to visualize your project? Download our Guardrail Sketch & Submit sheet to layout and plan for your space.

Improve the safety within your facility today! Learn more about our selection of guardrail.

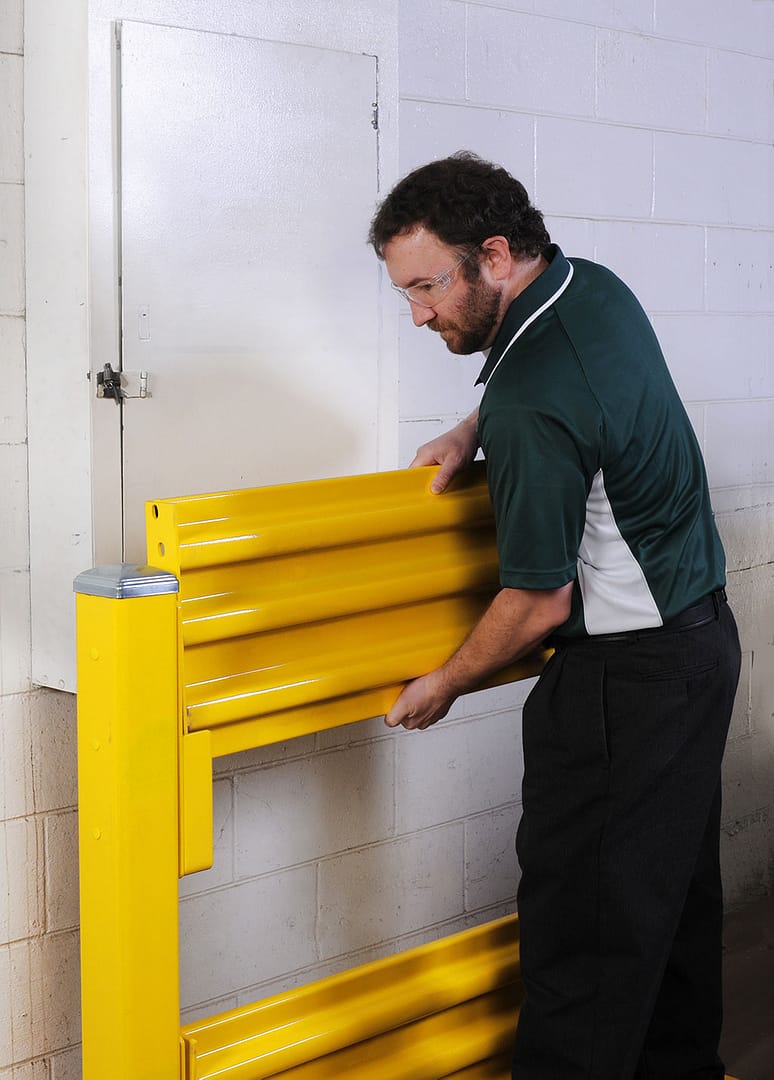

Lift-out rail
