3-5/8″ x 2-1/2″
2-13/16″ x 1-3/4″ slotted to 3-1/16″ x 1-3/4″
5/16″
Double ball swivel race for strength and durability

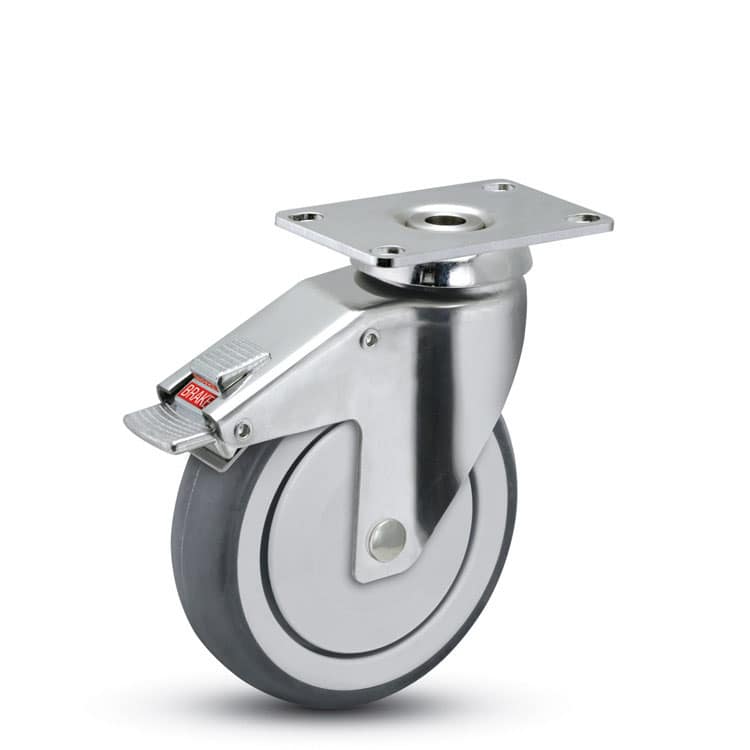

Available with top plates, grip ring stems, threaded stems, and hollow kingpins
CH Series – Chrome plated, SS Series – 304 Polished Stainless Steel
3″ to 6″ Diameter, 1-1/4″ Wide
Up to 260 lbs
Available direction locks, total lock brakes, and anti-microbial wheels.
For Stainless Steel change CH in part number to SS.
Top plates are excellent for retrofitting casters to existing furniture and case goods. As long as you have a flat surface, you can mount these casters.
All threaded stems are 1/2-13 UNC x 1-1/2" long
Normally found on formed and welded metal furniture, threaded stems are also found on wood furniture and attached with a T-nut.
All grip ring stems are 7/16" diameter x 1-7/16" long
Commonly found on chairs, IV poles, and other equipment with multi-leg bases, grip ring stem casters fit into bored holes with a clearance fit.
All hollow kingpins are 7/16" diameter
Hollow kingpins allow for flush mounting using a simple thru-bolt. Use a 7/16″ bolt and these casters can be mounted to almost anything.
